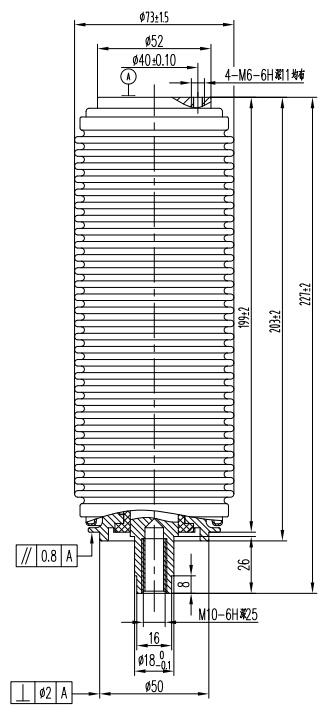

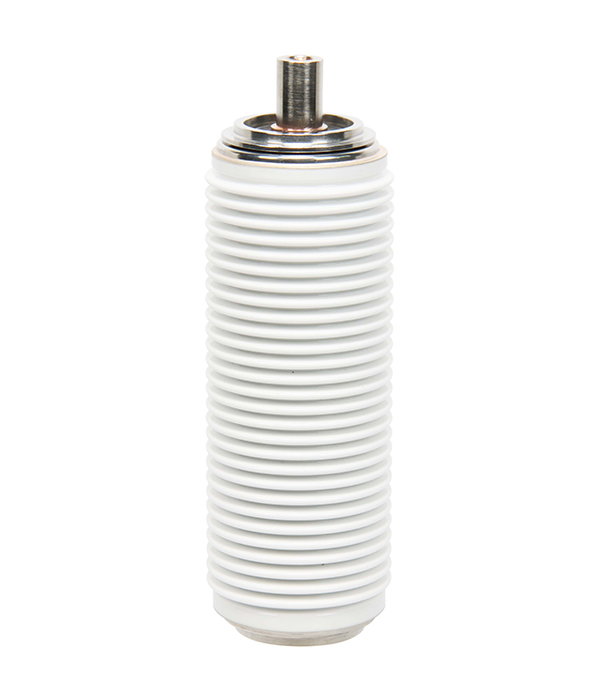

Vacuum interrupter for load breaking switch TF413V

Model:VITF24/630-20

Category:VI for load breaking switches

Product details

Main Technical Parameter
Rated voltage24KV
Rated current630A
Rated frequency50Hz
Rated short-time Power frequency withstand voltage65kV
Rated lightning impulse withstand voltage125kV
Rated short-time withstand current20kA
Rated duration of short-circuit4 s
Rated peak withstand current50kA
Rated short-circuit making current(peak)50kA
Rated active load breaking current630A
Rated closed-loop breaking current630A
Rated cable-charging breaking current10A
Rated breaking current of single capacitor bank400A
Mechanical endurance10000 times
Closing force due to bellow and atmosphere80±30N
Force required to hold contacts open at full storke120±50N
Circuit resistance at lowest rated contact force≤45μ?
Storage life20 years
Contacts limit erosion3mm
Weight of movable parts≤0.7kg
MECHANICAL DATA REQUIRED FOR THE MATCHED VACUUM SWITCHGEAR
Clearance between open contacts11±1 mm
Contact connection stroke3±0.5mm
Average opening speed1.2±0.2m/s
Average closing speed0.8±0.2m/s
Rated added extemal contact final force900±50N
Contact bouncing duration at closing operation≤2 ms
Closing and opening non-simultaneity of three-phase contacts≤2 ms
Maximum rebound durning opening≤2 mm
